An Overview of Image Data Augmentation in Deep Learning

In machine learning, particularly in computer vision, having a large and diverse dataset is crucial for training accurate models. However, obtaining such datasets can be expensive, time-consuming, or impractical, especially when labeled data is scarce.

In these cases, data augmentation becomes a valuable tool. By applying transformations to existing images, augmentation artificially increases the size and diversity of the dataset, helping the model generalize better. It introduces variations that are common in real-world scenarios, such as changes in orientation, lighting, and scale.

Data augmentation is particularly important when working with limited data. It helps prevent overfitting, a common issue where a model memorizes training data instead of learning generalizable patterns. With augmentation, the model is exposed to diverse examples, making it more robust and adaptable to unseen data.

What is Image Augmentation?

Image augmentation is a technique used to expand a dataset without needing to collect new images. This is done by applying random transformations to existing images, simulating real-world variations. These variations might include:

• Changes in orientation (e.g., flipping, rotating)

• Adjustments in brightness and contrast

• Scaling and cropping to simulate different object sizes

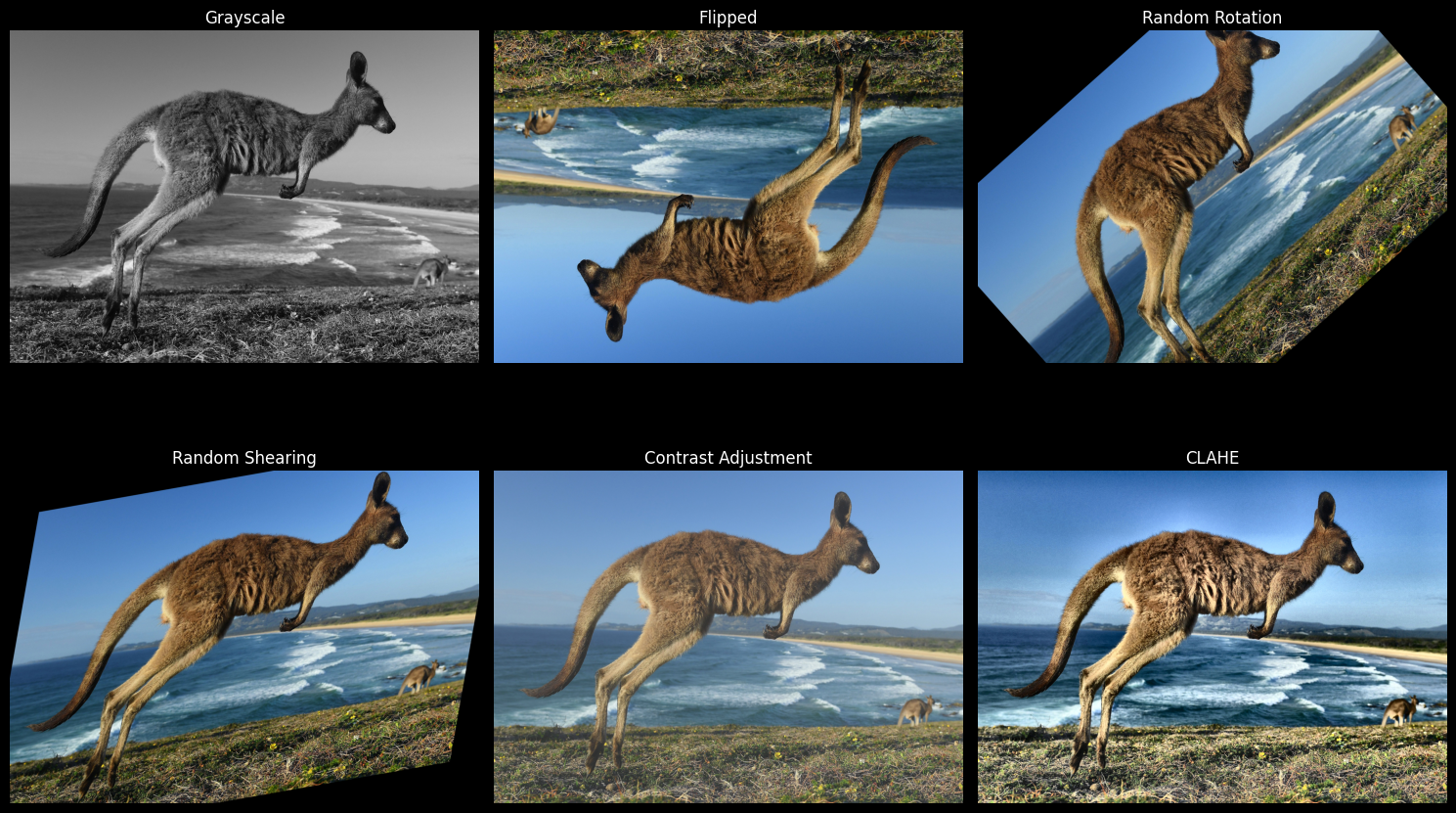

Below is a summary of some augmentation techniques we applied and how they transform the images:

Disadvantages of Image Augmentation

However, over-relying on data augmentation can have its drawbacks. Excessive augmentation may introduce unrealistic variations, leading to models that struggle with real-world data.

Moreover, if not carefully applied, augmentation can amplify biases in the original dataset, reinforcing and perpetuating existing disparities.

• Unrealistic data variations: Over-augmentation can lead to data that doesn’t reflect real-world conditions, impairing model performance.

• Amplification of bias: If the original dataset contains biases, augmentation can exacerbate them, reinforcing skewed predictions.

• Excessive noise: Too much noise in the augmented data can confuse the model, hindering its ability to learn key patterns.

• Increased training time: Larger augmented datasets result in longer training times and higher computational costs.

Python Visualization

Access the code in this guide on this GitHub Repository.

Setting Up the Python Environment

Before diving into the code, ensure you have the necessary libraries installed:

%pip install albumentations opencv-python pillow matplotlib Pillow

Next, let's import the required libraries. Albumentations is an open-source library for image augmentation, and we'll use PIL for image handling, NumPy for array manipulation, and Matplotlib for visualization.

from PIL import Image
import numpy as np
import matplotlib.pyplot as plt
import albumentations as A
from albumentations import Compose, Rotate, ShiftScaleRotate, Affine, RandomBrightnessContrast, RGBShift, ChannelShuffle

plt.style.use('dark_background')

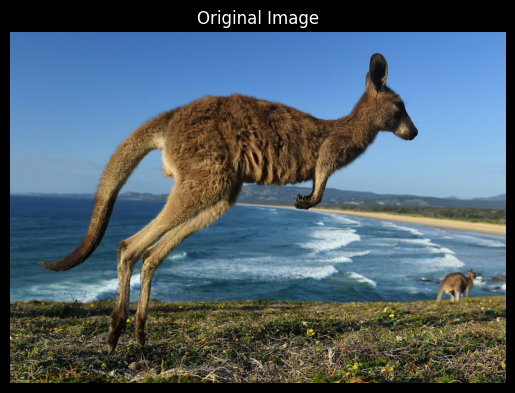

Visualizing the Original Image

First, we need to load the original image that we'll be augmenting. Let's define a simple function to display the image:

def show(image, title="Augmented Image"):
    plt.imshow(image)
    plt.title(title)
    plt.axis("off")
    plt.show()

# Load image using PIL and convert to RGB
image = np.array(Image.open("sample_image.jpg").convert("RGB"))

# Display original
show(image, "Original Image")

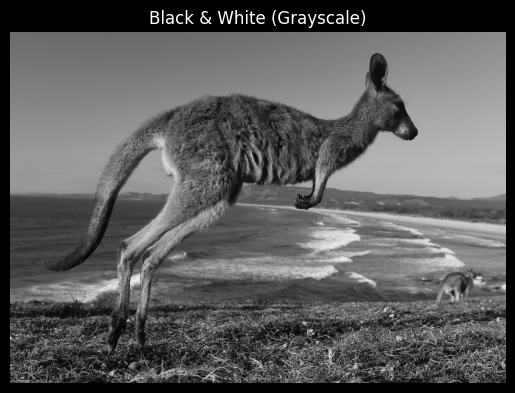

Grayscale (Black & White) Conversion

One of the simplest augmentations is converting an image to grayscale, which is especially useful for tasks where color information is not critical. This can help the model focus more on shapes and structures rather than colors.

# Define the transformation to convert to grayscale (black & white)
gray_augment = A.Compose([
    A.ToGray(p=1.0)  # Convert the image to grayscale with 100% probability
])

# Apply the grayscale transformation
gray_image = gray_augment(image=image)["image"]

# Show the black and white image
show(gray_image, "Black & White (Grayscale)")

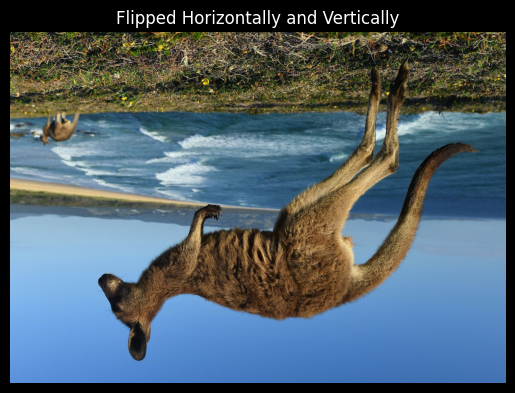

Horizontal and Vertical Flips

Flipping an image horizontally or vertically can simulate different orientations, making it an essential augmentation technique in many scenarios. This is particularly useful for images of objects that may appear in different orientations.

transform = A.Compose([
    A.HorizontalFlip(p=1.0),
    A.VerticalFlip(p=1.0)
])

augmented = transform(image=image)["image"]
show(augmented, "Flipped Horizontally and Vertically")

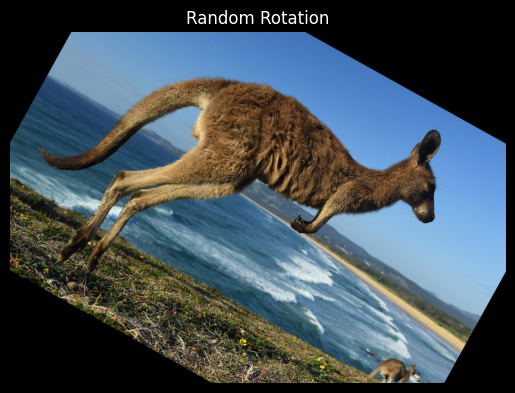

Random Rotation

Random rotation is a popular augmentation that allows the model to learn to recognize objects regardless of their orientation. You can apply a random rotation within a specific range of angles, like this:

# Apply a random rotation
rotation_augment = Compose([
    Rotate(limit=(-45, 45), p=1.0)  # Rotate by a random angle between -45 to 45 degrees
])

rotated_image = rotation_augment(image=image)["image"]
show(rotated_image, "Random Rotation")

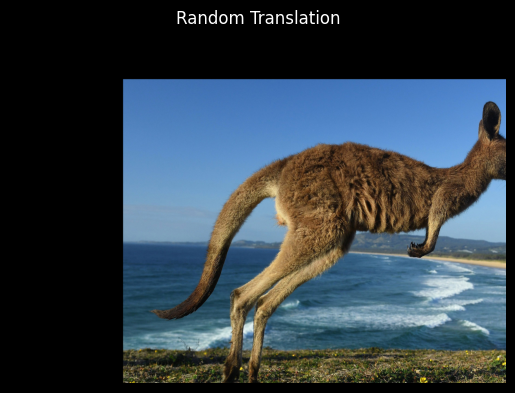

Random Translation (Shifting)

Translation refers to shifting an image along the x or y axis. This technique helps simulate scenarios where objects might be partially cut off or located at different positions within the image.

# Apply random translation (shifting)
shift_augment = Compose([
    ShiftScaleRotate(shift_limit=0.3, scale_limit=0, rotate_limit=0, p=1.0)  # Translation only
])

shifted_image = shift_augment(image=image)["image"]
show(shifted_image, "Random Translation")

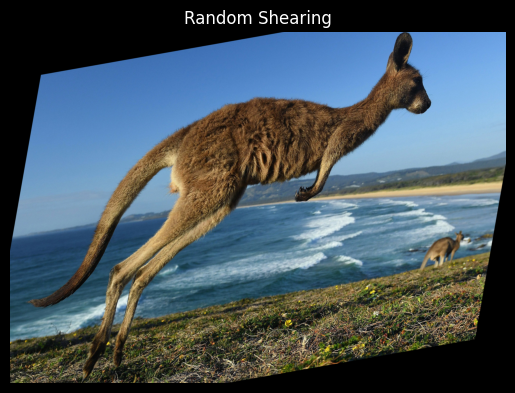

Random Shearing

Shearing is a transformation that distorts the image along one axis. This augmentation simulates the effect of viewing an object from an angle or from a perspective that is different from the original view.

# Apply random shearing
shear_augment = Compose([
    Affine(shear=10, p=1.0)  # Apply shear with a factor of 10 degrees
])

sheared_image = shear_augment(image=image)["image"]
show(sheared_image, "Random Shearing")

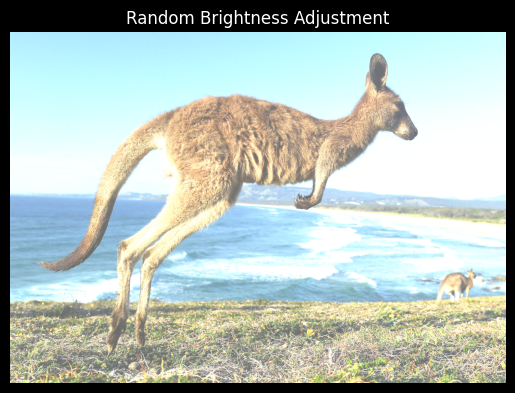

Brightness and Contrast Adjustments

In real-world conditions, the lighting may vary, and images may appear either too bright or too dark. Random brightness and contrast adjustments help the model learn to handle such variations.

# Apply random brightness adjustment
brightness_augment = Compose([
    RandomBrightnessContrast(brightness_limit=0.3, p=1.0)  # Random brightness adjustment
])

brightness_image = brightness_augment(image=image)["image"]
show(brightness_image, "Random Brightness Adjustment")

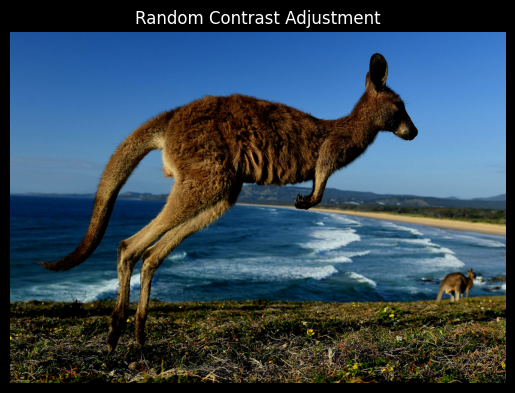

Similarly, for contrast adjustment:

# Apply random contrast adjustment
contrast_augment = Compose([
    RandomBrightnessContrast(contrast_limit=0.3, p=1.0)  # Random contrast adjustment
])

contrast_image = contrast_augment(image=image)["image"]
show(contrast_image, "Random Contrast Adjustment")

RGB Shift

Shifting the RGB channels helps the model learn to deal with color variations. By applying random shifts to the Red, Green, and Blue channels, you make the model invariant to slight color shifts.

# Apply RGB shift
rgb_shift_augment = Compose([
    RGBShift(r_shift_limit=20, g_shift_limit=20, b_shift_limit=20, p=1.0)  # Shift each channel by a random amount
])

rgb_shifted_image = rgb_shift_augment(image=image)["image"]
show(rgb_shifted_image, "Random RGB Shift")

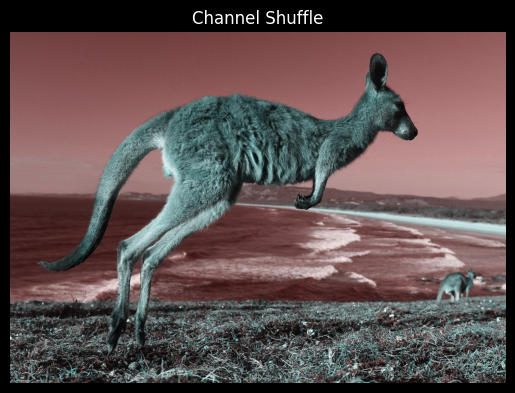

Channel Shuffle

Shuffling the color channels (Red, Green, and Blue) is another augmentation technique that can help the model generalize better. By randomizing the order of the color channels, you simulate the effect of different sensor outputs or variations in color representations.

# Apply Channel Shuffle
channel_shuffle_augment = Compose([
    ChannelShuffle(p=1.0)  # Shuffle the RGB channels
])

channel_shuffled_image = channel_shuffle_augment(image=image)["image"]
show(channel_shuffled_image, "Channel Shuffle")

Noise and Gaussian Blur

Adding noise and applying a Gaussian blur are useful for simulating real-world noise and blurring effects that can occur in images. These transformations help the model focus on relevant features while ignoring noise.

transform = A.Compose([
    A.GaussNoise(var_limit=(10.0, 50.0), p=1.0),
    A.GaussianBlur(blur_limit=(3, 7), p=1.0)
])

augmented = transform(image=image)["image"]
show(augmented, "Noise & Gaussian Blur")

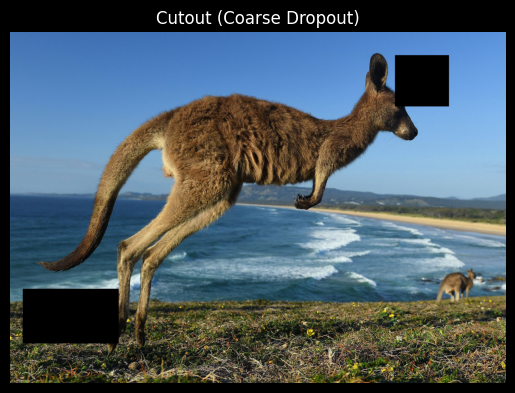

Cutout (Coarse Dropout)

Cutout is a form of data augmentation where rectangular sections of an image are randomly dropped out. This helps the model focus on the remaining parts of the image and improves robustness.

transform = A.Compose([
    A.CoarseDropout(max_holes=8, max_height=32, max_width=32,
                    fill_value=0, p=1.0)
])

augmented = transform(image=image)["image"]
show(augmented, "Cutout (Coarse Dropout)")

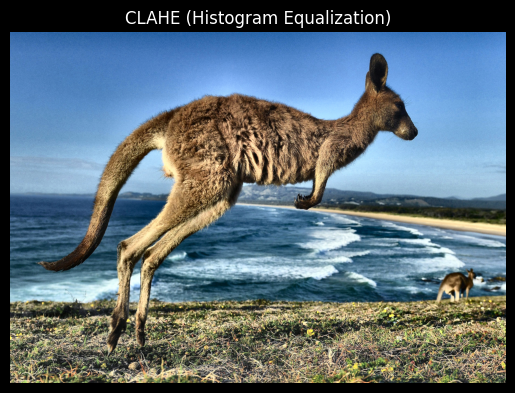

CLAHE (Histogram Equalization)

Contrast Limited Adaptive Histogram Equalization (CLAHE) is a technique used to enhance the contrast of an image. It divides the image into small tiles and applies histogram equalization to each tile.

transform = A.Compose([
    A.CLAHE(clip_limit=4.0, tile_grid_size=(8, 8), p=1.0)
])

augmented = transform(image=image)["image"]
show(augmented, "CLAHE (Histogram Equalization)")

Conclusion

These are just a few of the many image augmentation techniques that can be used to diversify training datasets and improve model generalization. When using these augmentations, remember to apply them thoughtfully to ensure they make sense for your specific task.
